Operation:

• Load the impact body
• Place the impact body on your test piece
• Push the button to begin testing and obtain reading

Standard Accessories:

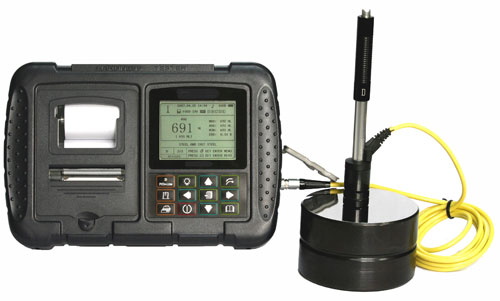

• Base instrument
• Impact device D
• Calibrated test block
• Custom carry case
• Cleaning brush
• Operation manual

Optional accessories:

• Impact devices; DC, D+15, DL, G, C
• Special support rings



Functions:

• Easy to read menu operation
• Large LCD display with back light
• USB Ouput
• Automatic conversions to: Brinell, Rockwell, Vicker
  and Shore
• Automatic mean value as well as Min & Max values
• Multi-Functional Data storage capacity


Specifications:

• Accuracy: +/- 0.5% (referred to L=800,
• Repeatability accuracy: +/- 4L units) L=Leeb
• Measuring range: 200-960 HL
• Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron,
• spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
• Battery type: AAA alkaline (4)
• Operating  temperature: 5-104 degrees F
• Dimensions: 108 x 62 x 25mm
• Weight: 230 grams

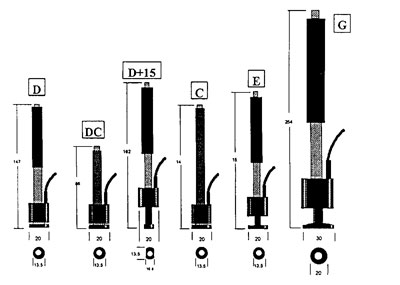

Special Application Impact Devices

Impact Device D
Universal standard device:
Use for the majority of hardness testing assignments
Impact Device DL (not shown)
Needle front section  .109” diameter x 1.96” length
Measurements in extremely confined spaces
Impact Device G
Enlarged test tip: For use on solid heavy components such as; rough castings and forgings. Brinell only.
Impact Device DC
Extremely short impact device
Used for very confined spaces such as holes, cylinders, internal measurements
Impact Device D+15
Slim front section with coil set back.
Hardness measurements in grooves, recessed surface.
Impact Device C
Reduced impact energy
For testing case hardened or thin walled components
